- OPTOTRONIC Linear Programmable LED Driver
- Constant Current, 0-10V Dimmable LED Driver
- Input Voltage: 120-277VAC 50/60 Hz
- Pout: 55W, Vout: 20-46VDC, Iout: 800mA/1000mA/1200mA
- UL Class 2 output for safe operation, Class P
OPTOTRONIC Current Select Drivers

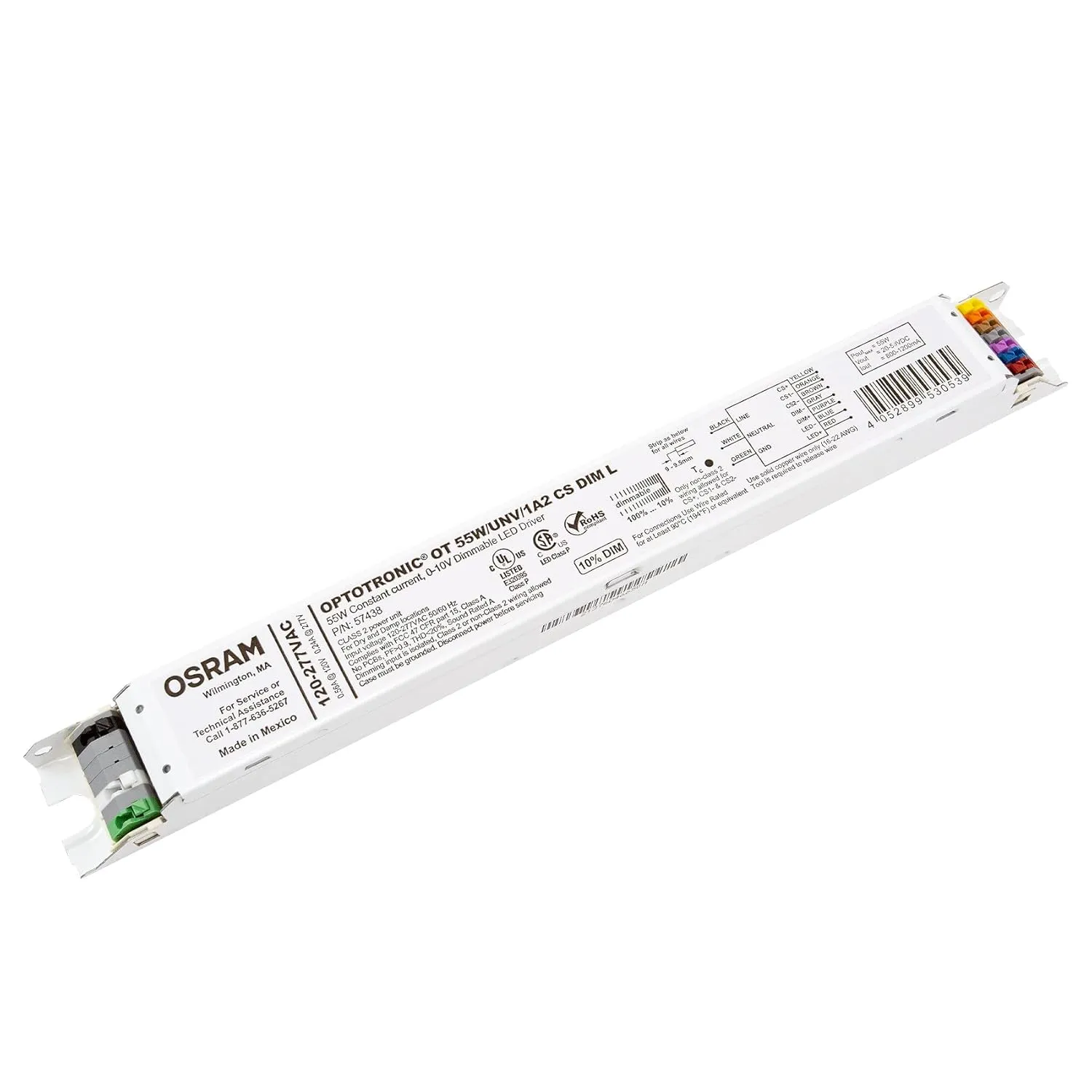

Osram 57438 OPTOTRONIC OT 55W/UNV/1A2 CS DIM L 55W Constant Current, 0-10V Dimmable LED Driver
Product Features
- General Description: Dimmable 55W Linear driver with external current set
- Input Voltage: 120-277V ( /- 10%)
- Frequency Range: 50-60 Hz ( /- 10%)
- Max. Output Power (W): 55W
- Dimming Control: 0-10V (Dimming input is isolated, Class 2 or non-Class 2 wiring allowed)
- Dimming Range: 10-100%
- Output Voltage (VDC): 20-46VDC
- Output Current (mA): 800mA/1000mA/1200mA
- Product Dimensions (L x W x H): 11.00" x 1.14" x 1.00"
- Product Weight: 8oz
- Quantity: 1
- UL Environmental Rating: Dry & Damp
- UL File Number: E320395
Product Family Features
- Slim form factors
- Input voltage:
- Universal 120-277 VAC 50/60Hz
- UL Class 2 output for safe operation, Class P
Areas of Application
- Indirect/direct
- Linear
- Recessed troffer
- Product Dimensions : 11 x 1.14 x 1 inches; 8.47 ounces
- Date First Available : January 14, 2022
- Manufacturer : OSRAM
- Country of Origin : Mexico
